Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
Alle Produkte
-
Optisches Quarzglas
-
Bearbeitung von Quarzglas
-
Quarz-Glasrohr
-
Kapillarrohr aus Quarz
-
Borosilikatglasrohr
-
Stab aus Quarzglas
-
Laser-Ersatzteile
-
Siliziumdioxid-Sputtering-Target
-
Quarzapparat
-
Quarz-Glasplatte
-
Kundenspezifische Glasteile
-
Kundenspezifische Keramikteile
-
Optische Herstellungs-Ausrüstung
-
Beweglicher Glasdeckel, der Maschine herstellt
-
Optisches Messgerät
-
Optischer Kristall

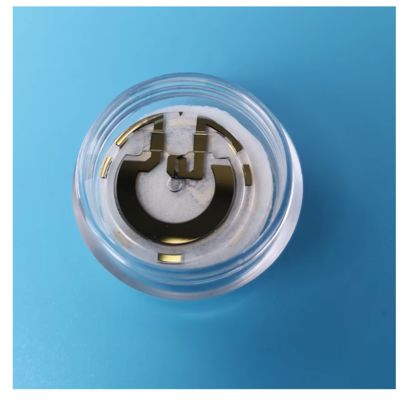

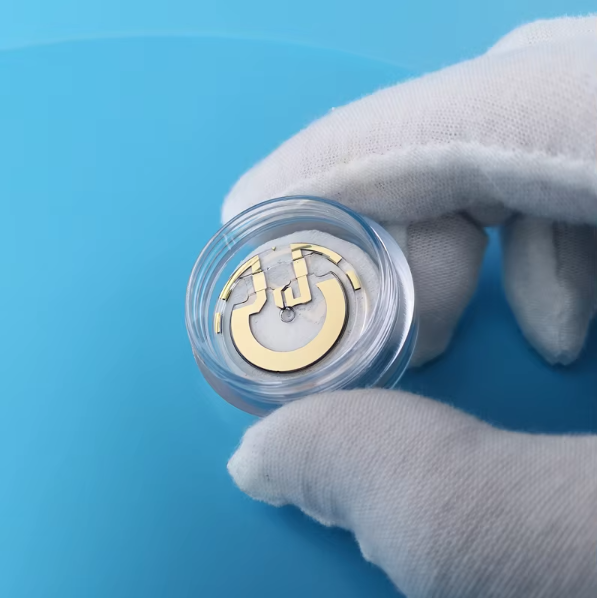

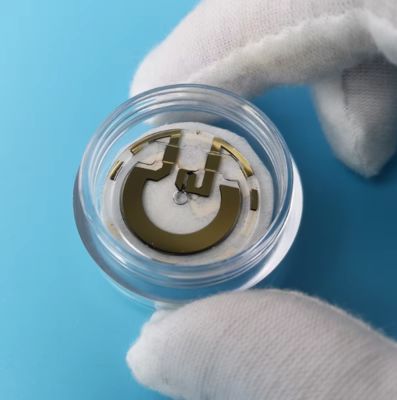

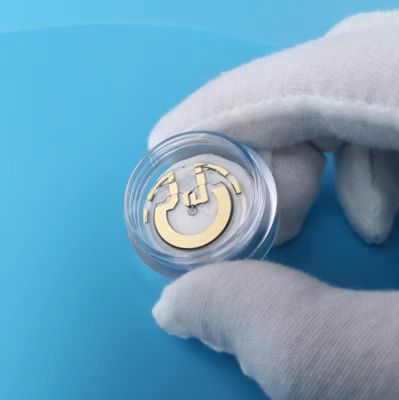

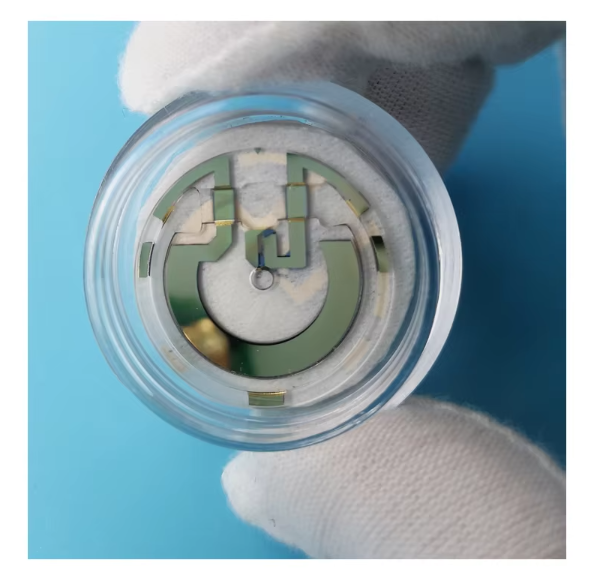

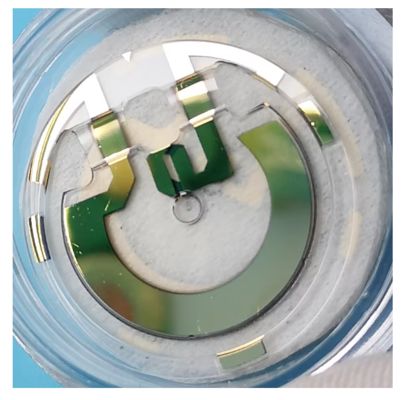

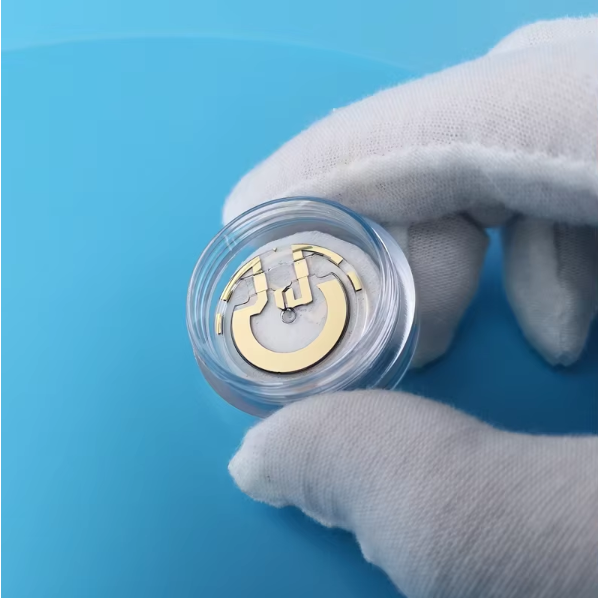

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| Herkunftsort | Shandong, China |
|---|---|
| Markenname | ZKTD |
| Zertifizierung | ISO 9001:2008, Rohs |
| Modellnummer | ZKTD-PO12 |
| Min Bestellmenge | 5 PCs |
| Preis | USD 48/Pieces |
| Verpackung Informationen | Karton, Holzkiste, Perlen Baumwolle. |
| Lieferzeit | 14 Werktage |
| Zahlungsbedingungen | L/c, t/t |
| Versorgungsmaterial-Fähigkeit | 10000 Stück/Monat |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Hervorheben | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Produkt-Beschreibung
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |
Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
